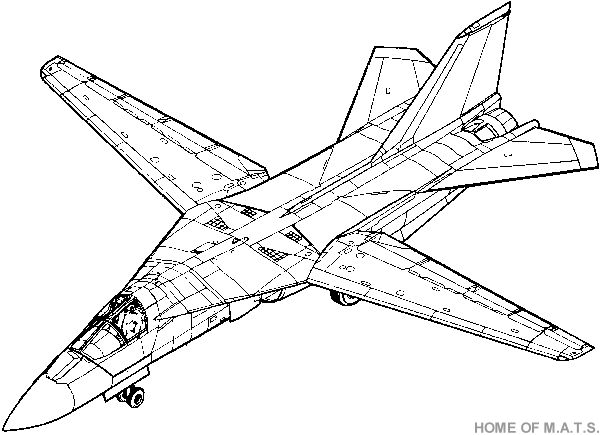

F-111B



Even though the F-111 was designed by General Dynamics, General Dynamics and Grumman (with knowledge about swing-wing carrier aircraft) teamed up to enter the competition for the joint-service TFX programme. The TFX was an air superiority fighter for both the Air Force and Navy. The F-111B was the naval version of the F-111 with a shorter nose, capability for 6 AIM-54 Phoenix air-to-air missiles and long-range radar. Among other problems, the F-111B proved to be too heavy and big for the Navy's carriers. When the F-111B was cancelled in 1967, the Navy looked for a replacement and launched the VFX programme which was won by Grumman's F-14 Tomcat.


  • Engine Two Pratt & Whittney J52-P-8A /P-8B /P-408 turbojets
  • Thrust 18,500 lbs each
  • Length 68 ft 10 in
  • Wingspan 70 ft (wings forward)
  • Wingspan 33 ft 11 in (wings swept)
  • Height 16 ft 8 in
  • Wing Area 655.5 sqft
  • Empty Weight 46,500 lbs
  • Max. Weight 83,062 lbs
  • Max. Speed 793 mph
  • Cruise Speed 428 mph
  • Ceiling 52,600 ft
  • Combat Range 2330 miles


Photo: US Navy
