F7F Tigercat

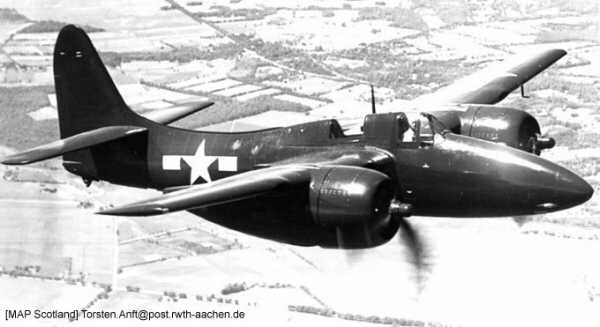

The XF7F-1 (Grumman design G-51) flew for the first time in December 1943 and met the Navy's requirements for a multi-engined carrier-based fighter aircraft with a ground-support role. The first Tigercats were delivered to the fleet in April 1944 but operational problems and changing requirements led to the production cancellation of some of the 500 ordered aircraft.

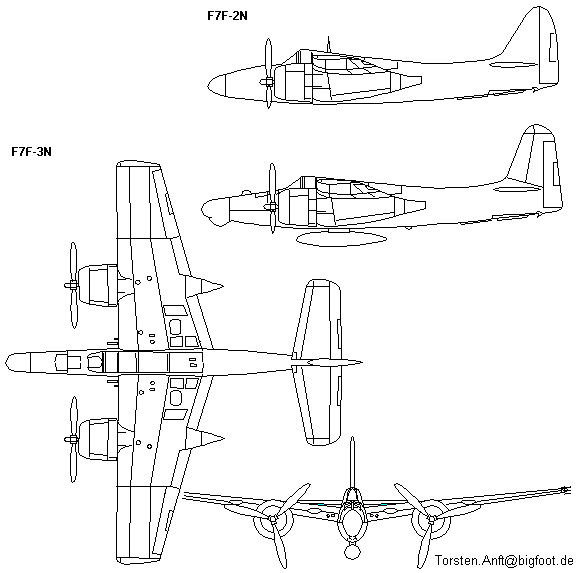

Soon after the production of the F7F had begun, a two-seat night-fighter variant - the F7F-2N - was produced temporarily. Then F7F-3s were built (with more powerful engines) and until late 1946 more F7F-3Ns and F7F-4Ns were produced by Grumman. All in all 36 F7F-1s, 1 XF7F-2, 65 F7F-2Ns, 189 F7F-3s, 60 F7F-3Ns and 13 F7F-4Ns were produced. All three night-fighter variants were two-seaters without nose-guns, but with a radar in the aircraft's nose. Some later modifications were F7F-3Es (with special equipment) and camera-equipped F7F-3Ps.


  • Engine Two 2,100 hp Pratt & Whittney R-2800-34W
  • Length 45 ft 4 in
  • Wingspan 51 ft 6 in
  • Height 16 ft 7 in
  • Wing Area 455 sqft
  • Empty Weight 16,270 lbs
  • Max. Weight 25,720 lbs
  • Max. Speed 435 mph
  • Cruise Speed 222 mph
  • Ceiling 40,700 ft
  • Ferry Range 1,200 miles
  • Armament Four 20 mm guns and four 0.5-in guns, up to 1,000 lbs under each wing or one torpedo under the fuselage
