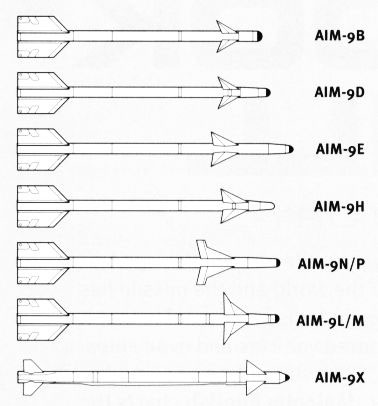

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	AIM-9 Sidewinder The AIM-9 Sidewinder is a short-range air-to-air missile and will be fired whenever the aerial target is out of reach of the cannon. The Tomcat can be load with a maximum of 4 Sidewinders at a time, two on each wing-pylon. Specifications: Length 9 ft 5 in Diameter 5 in Wing Span 2 ft 1 in Weight 195 lbs Speed 1900 mph Range 10+ nm Warhead Blast fragmentation (conventional) weighing 20.8 pounds Power Plant Thiokol Hercules and Bermite MK 36 Mod 11; single-stage, solid-propellant rocket motor Guidance System Solid-state infrared homing system Date Deployd 1956 Click on image-icons to view an enlarged photo: All graphics Copyright © Torsten Anft
