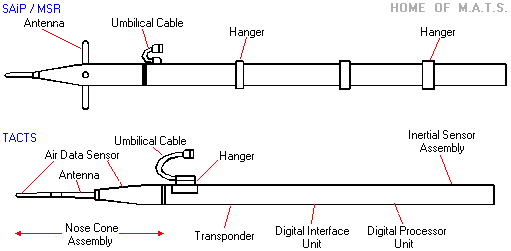

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	Combat Training Pod The Tactical Aircrew Combat Training System (TACTS) is used to monitor air combat training for later analysis and to provide a detailed report for crew and instructors on the performance during air combat maneuvering training. (MSR = Mobile Sea Range) Specifications TACTS: Length 138 in (Dev. SAIP 138.5 in, MSR SAIP 148 in) Diameter 5 in Weight 72 lbs (Dev. SAIP & MSR SAIP 83 lbs) Suspension Prov. LAU-7 Click on image-icons to view an enlarged photo: All graphics Copyright © Torsten Anft
