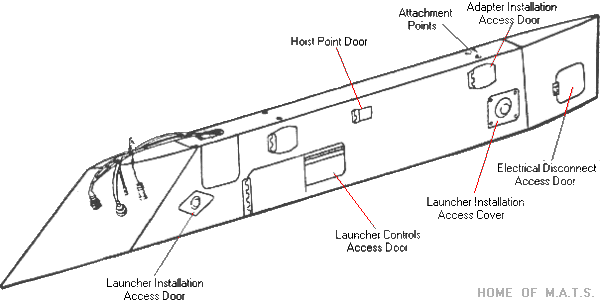

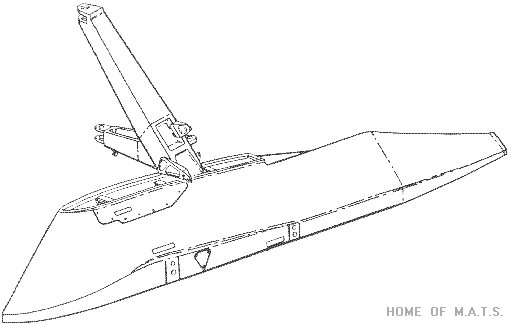

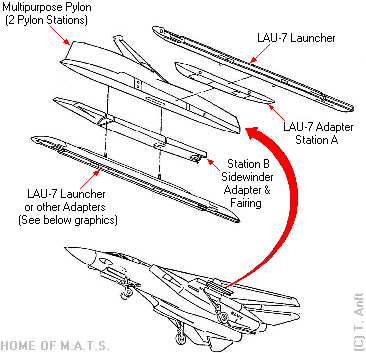

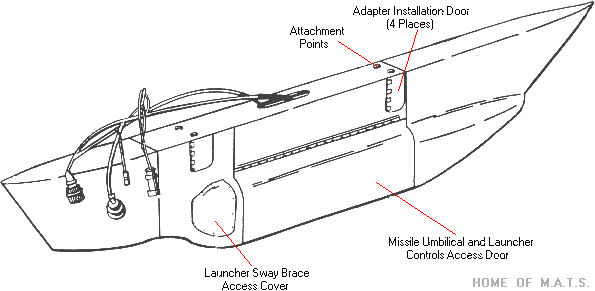

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	Multi-purpose Pylon The multi-purpose pylon can carry a range of four different pylons that can be attached to it to carry different weapons and pods. The oblique construction of the multi-purpose pylon is due to the position of the main gear and the wing pivot center. Additionally to the pylons that are shown below, the LANTIRN pod adapter or the LAU-138 missile rail & chaff dispenser can be attached to the multipurpose pylon. Specifications Multipurpose Pylon: Length 120 in Width 34 in Height 29 in Weight 244 lbs Specifications LAU-92 Adapter for AIM-7 Missile: Length 120 in Width 9.5 in Height 15 in Weight 54 lbs Specifications LAU-93 Adapter for AIM-54 Missile: Length 139 in Width 8.25 in Height 14.5 in Weight 100 lbs Specifications LAU-7 Adapter for AIM-9 Missile/TACTS: Length 111 in Width 4 in Height 5 in Weight 87 lbs All graphics Copyright © Torsten Anft
