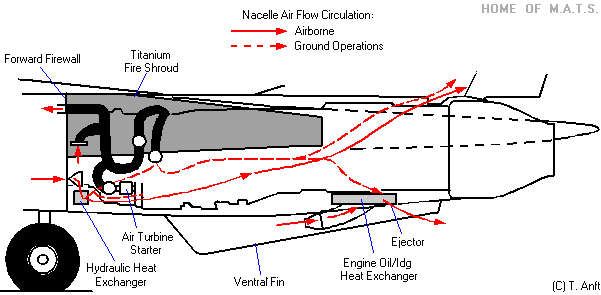

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	Engine Compartment Ventilation In-flight cooling of the F-14s engine compartment is accomplished by nacelle ram air scoops, circulating boundary-layer air through the length of the compartment and expelling the air overboard through louvered exits, just forward of the engine nozzles shroud. With weight on wheels during ground operations, cooling airflow through teh engine compartment is induced by the hydraulic heat exchanger ejector in the forward end of the compartment. Air enters through the nacelle ram air scoop on the left side, passes through the hydraulic heat exchanger, and is discharged into the engine compartment. The air flows through the full length of the nacelle to discharge overboard through a louvered port atop the nacelle on the outboard side of the vertical tail. Click on image-icons to view an enlarged photo: All graphics Copyright © Torsten Anft
