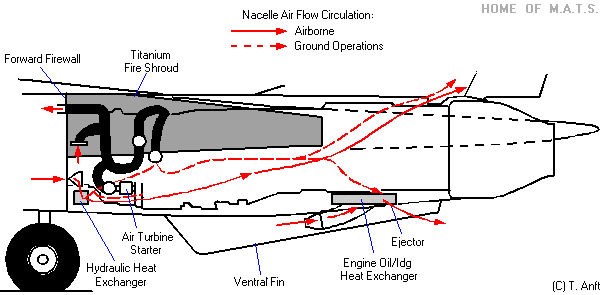

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	Ventral Fins The main purpose of the ventral fins on the underside of each engine of the F-14 is to enhance longitudinal stability together with the vertical tails. Also, they house the air intakes for the engine heat exchangers: Despite of what is written in a few books, both ventral fins house such an air intake. They are both on the same side of each ventral fin as shown in the photos below. Click on image-icons to view an enlarged photo: All graphics Copyright © Torsten Anft
