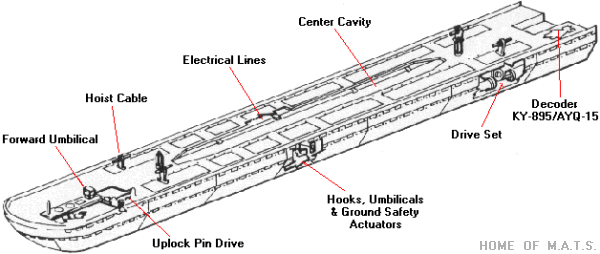

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	AIM-54 Missile Fairing & Adapter The AIM-54 missile rail was originally designed to carry only the Phoenix missile. The F-14A/B use the LAU-93 missile launcher, the F-14D uses the LAU-132 which is little different except for a few electronics upgrades. Today the rail can be equipped with different adapters to carry numerous weapons and pods: various bombracks AN/ALQ-167 ECM Pod Expanded Chaff Adapter CNU-188 Baggage Container TARPS (DI) pod Even in the air-toground configuration the F-14 is still equipped with the Phoenix fairings, since these fairings help disrupt the air flow and allow air-to-grond stores to separate cleaner.
		Right Fairing	Left Fairing	Adapter	Rail
	Weight	50 lbs	25 lbs	? lbs	307 lbs
	Length	32 in	32 in	10 in	160 in
	Width	24 in	24 in	22 in	22 in
	Height	16 in	16 in	11 in	11 in
	Click on image-icons to view an enlarged photo: All graphics Copyright © Torsten Anft
