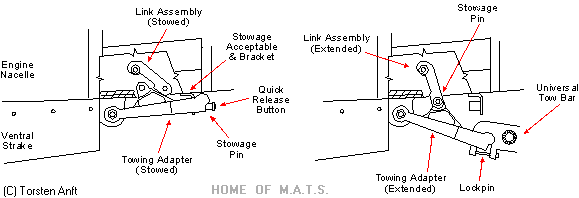

F-14 Tomcat: History Specifications Bureau Numbers Walk-Around Squadrons Photos Books Memorabilia Other Topics: Grumman A/C EXTRA 400 A/C Photos Links Guestbook Credits The Author	Towbar Adapter Towing is used to move the aircraft on the ground when the engines are shut down. Usually, a towbar is attached to the noselanding gear and a tractor pulls or pushes the Tomcat around. But sometimes - on the crowded decks of an aircraft carrier - the towbar can not be attached to the noselanding gear: The towbar - which is a two-part bar like a pair of dividers - is then spread out and attached to the rearward towbar adapters. The rearward towbar adapter is a small device aft of each of the F-14's ventral fin: Click on image-icons to view an enlarged photo: All graphics Copyright © Torsten Anft
