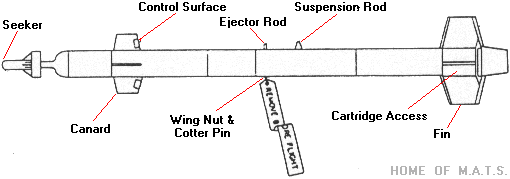

BDU-57 Laser-Guided Training Round



Instead of delivering expensive life ammunition, practice bombs are used for practice missions. Ironbomb practice ammunition looks generally the same as the life bomb except the blue colour. With laser-guided ammunition it is somewhat different, the laser-targeting head is active and the rest is shaped to perform like the real thing.
